FRICTION MECHANICS – VIVA

Basic Definitions and Concepts

#QuestionAnswer
1Define friction in orthodonticsForce opposing relative motion between two systems (bracket, archwire, ligation) that are in contact
2Why is friction inevitable in orthodontics?Because the bracket, archwire, and ligation are always in physical contact during sliding mechanics
3Name the two types of frictionStatic friction and kinetic friction
4Define static frictionFriction that opposes an applied force; its magnitude equals whatever is needed to prevent motion until overcome.
5Define kinetic frictionFriction that opposes the direction of motion once movement has started; usually less than static friction.
6Which type of friction is clinically more relevant in orthodontics, and why?Static friction, because continuous sliding motion along the archwire rarely occurs clinically.
7Why is kinetic friction considered practically irrelevant in tooth movement?Because orthodontic tooth movement is not continuous sliding but an intermittent, quasi-static process.
8What is meant by “quasi-static thermodynamic process” in sliding mechanics?A slow process that passes through a sequence of states close to equilibrium, rather than true continuous motion.
9Who authored the classic critical review on friction and resistance to sliding?S. Jack Burrow, published in AJO-DO 2009.
10What does resistance to sliding (RS) mean?The total resistance encountered by a wire sliding through a bracket comprises friction, binding, and notching.

Biomechanics of Conventional Sliding

#QuestionAnswer
11In sliding mechanics, where are forces applied relative to the center of resistance (Cres)?Away from the center of resistance of the segments being moved
12What is the consequence of applying force away from Cres?It generates moments that tip the segments in different planes
13Describe the sagittal-plane effect of retraction force in extraction casesAnterior segment tips distally, posterior segment tips mesially
14Describe the transverse-plane effectMesial out-rotation of canines and mesial in-rotation of premolars
15Describe the vertical-plane effectDeepening of the bite
16How does frictionless mechanics counter these unwanted moments?Alpha and beta moments incorporated into loops compensate for the moments generated by the applied force
17How does sliding mechanics generate the necessary counteracting moments?Through the interaction between bracket and wire (contact and binding), not through loop bends
18What is expressed as a result of bracket-wire interaction in sliding mechanics?First, second, and third order movements (tip, torque, in-out)
19Why is understanding sliding biomechanics a prerequisite to understanding friction’s role?Because friction’s clinical significance depends on how forces and moments are generated during sliding
20What produces the tipping, torqueing, and in-out corrections in sliding mechanics if not loop bends?Interactive contact/binding between archwire, bracket, and ligation

Is Friction All Bad? Stick-Slip Phenomenon

#QuestionAnswer
21Is friction entirely undesirable in orthodontics?No; friction is both a hindrance during sliding and a necessity for generating corrective couples
22What is desired during retraction with sliding mechanics?Reduced friction so the wire can freely slide through the bracket
23What stops further tipping of a tooth during retraction?Contact of the bracket with the wire, which prevents further tipping
24What creates the moment of the couple during retraction?Classic frictional contact between bracket and wire plus the wire’s resilience
25What moment is induced in the anterior segment during retraction?Distal root uprighting moment
26What moment is induced in the posterior segment during retraction?Mesial (root) uprighting moment
27What happens after the uprighting movement occurs?The frictional contact between bracket and wire is relieved
28What happens to the tooth once contact is relieved?It is free to tip again for the next cycle
29What is this repeating cycle called?Stick-slip phenomenon, also called “walking of the canine”
30Is stick-slip specific to canine retraction only?No; a similar contact-based couple is created for torqueing and in-out movements as well
31Summarize the ideal friction requirement in sliding mechanicsLow friction is needed for sliding, but adequate frictional contact is needed to deliver couples
32What are the two opposing frictional requirements in sliding mechanics called (concept)?The friction paradox — lower friction desired for translation, higher friction/binding desired for couple generation

Force Decay Concept

#QuestionAnswer
33Why is force decay necessary in regular sliding mechanics?For the couple from bracket-wire interaction to be adequately expressed for tip, torque, and in-out correction
34What happens if the applied force does not decay or is too high?The couple generated will be inadequate for tipping, torqueing, and in-out movements to occur
35Which reference discusses force decay in incisor retraction with mini-implant anchorage?Upadhyay, Yadav, and Nanda, Journal of Orthodontics 2014
36How does high sustained force affect binding-generated couples?It prevents adequate binding-based couple generation needed for correction movements

Sliding Mechanics with Implants

#QuestionAnswer
37Name three clinical scenarios where sliding mechanics is typically usedGeneralized spacing cases, premolar extraction cases, enmasse distalization with implants
38Does implant-assisted space closure fall under friction or frictionless mechanics?Friction mechanics, since it involves the archwire sliding through brackets
39What is the major biomechanical difference between conventional and implant-assisted sliding?Difference in space utilization and line of force
40How much anchorage loss occurs with implant-assisted sliding?Almost none — anchorage conservation is nearly full
41Which types of space closure can be achieved with implant-supported sliding?Group A or Group C space closure
42Why is the line of force diagonal in implant-assisted sliding?Because implants are usually placed higher than the molar hooks
43How does implant placement affect the line of force relative to Cres?It brings the line of force closer to the center of resistance
44What effect does this closer line of force have on the moments generated?Moments are of lesser magnitude compared with conventional mechanics
45What effect does lower moment magnitude have on the required couple?The moment of the couple required also becomes lesser
46Can the line of force be modified in implant mechanics?Yes, infinitely, based on implant and hook position relative to the case requirement

V-Bend Sliding Mechanics (Mulligan Mechanics)

#QuestionAnswer
47Who developed V-bend sliding mechanics and when?Thomas F. Mulligan, in the 1970s
48What is the primary clinical application of V-bend mechanics?Closing space by moving individual teeth (canine retraction or molar protraction)
49What key concept did Mulligan introduce?Differential moment as a means of effective intraoral anchorage
50How is differential moment achieved?By applying unequal alpha and beta moments
51How are moments and forces applied separately in V-bend mechanics?Moments via the continuous archwire and its bends; force via auxiliaries like elastomeric chain or closed-coil springs
52Why is an off-center V-bend used?To create unequal moments, with a higher moment applied to the anchorage teeth
53How does bend position affect wire segment length and moment?Bend closer to a bracket shortens that wire segment; shorter wires have higher bending moments than longer wires
54Which bracket experiences the higher moment: closer or farther from the V-bend?The bracket closer to the V-bend
55How does a higher moment affect tipping of that segment?The segment with higher moment undergoes less tipping for the same reciprocal force, establishing differential anchorage
56What V-bend angle is used for 0.016″ round stainless steel wire?45°
57What V-bend angle is used for 0.018″ wire?30°
58What V-bend angle is used for 0.020″ wire?15°
59What is the relationship between wire size and V-bend angle?Inverse relationship — thinner wire needs a larger V-bend angle
60Who published the force system analysis of V-bend sliding mechanics?Siatkowski RE, JCO 1994

Laws of Friction

#QuestionAnswer
61State the first law of frictionFrictional force is proportional to the normal applied load by a constant, the coefficient of friction
62State the second law of frictionThe coefficient of friction is independent of apparent contact area
63State the third law of frictionThe coefficient of friction of a couple is independent of the sliding velocity
64According to the second law, should bracket/wire dimensions matter clinically?Theoretically no, but clinically dimensions matter with respect to the critical contact angle
65Why does dimension still matter despite the second law?Because dimensions determine the critical contact angle, beyond which binding/notching (not classical friction) dominates

Resistance to Sliding – Kusy and Whitley Model

#QuestionAnswer
66Who proposed dividing resistance to sliding into three components?Kusy and Whitley .
67Name the three components of resistance to slidingFriction (FR), binding (BI), notching (NO) .
68Define friction (FR) componentStatic or kinetic friction due to wire contact with flat bracket surfaces .
69Define binding (BI) componentContact between wire and the corners of the bracket, occurring when the tooth tips or wire flexes .
70When does binding occur clinically?When a force applied to move a tooth causes it to tip until the wire contacts the bracket corners .
71Define notching (NO) componentPermanent deformation of the wire at the wire-bracket corner interface .
72Is notching reversible?No, it represents permanent wire deformation .
73What is the sequence of resistance components as contact angle increases?Friction → Binding → Notching

Critical Contact Angle

#QuestionAnswer
74Define the contact angle (θ)The angle between the archwire and the bracket slot
75Define the critical contact angle (θc)The angle boundary between classical frictional behavior and binding/notching phenomena .
76What happens when θ ≤ θc?Classical friction occurs
77What happens when θ > θc?Binding and notching begin, increasingly restricting sliding mechanics .
78What is the theoretical maximum θc for nominal bracket/wire dimensions?Approximately 3.7 degrees for standard slot sizes .
79What range does θc typically fall within?Between 0 and approximately 4 degrees .
80Who established the mathematical derivation for θc?Kusy and Whitley (EJO 1999) .
81Why is knowledge of both wire AND bracket dimensions necessary to calculate θc?Knowledge of the archwire-bracket combination is needed, not either component alone .
82What clinical strategy minimizes binding and notching?Selecting archwire and slot size combinations that keep the contact angle low
83Should sliding mechanics ideally begin when θ is much less than θc, equal to θc, or greater?Sliding should be initiated when θ approximates θc, avoiding over-alignment before sliding and avoiding exceeding θc .

Coefficient of Friction and Force Equations

#QuestionAnswer
84Write the equation for effective forceFE (effective force) = FA (applied force) − FF (frictional force)
85Write the equation for frictional forceFF = coefficient of friction (µ) × normal force
86What determines the coefficient of friction (COF)?Type of material and surface roughness
87Which archwire alloy has the least friction?Stainless steel (SS)
88Which archwire alloy has the most friction?Beta-titanium (TMA)
89Rank archwire materials by increasing surface roughness/frictionSS < Co-Cr < Beta-titanium < NiTi
90Which wires show greater magnitude and frequency of frictional force variation?NiTi and beta-titanium wires, more than SS or Co-Cr
91What method demonstrated the surface roughness ranking of archwires?Specular reflectance studies
92What is the overall efficiency range of orthodontic bracket/wire couples?40% to 88% (effective force delivered relative to applied force)
93What determines whether efficiency is at the lower or higher extreme of 40-88%?The wise choice of materials and their dimensions
94Who published the overview on friction referenced for COF and materials?P. Rossouw, Seminars in Orthodontics, 2003

Applied/Clinical and Integrative Questions

#QuestionAnswer
95Why would an orthodontist prefer stainless steel wires for sliding mechanics?Lowest surface roughness and coefficient of friction, giving more efficient force delivery
96Why might beta-titanium be avoided during heavy sliding mechanics despite good elasticity?Higher friction and greater variability in frictional forces reduce efficiency of force delivery
97How does implant-assisted sliding reduce the friction-related side effects of conventional sliding?By reducing moment magnitude near Cres, it reduces the binding-generated moments and associated tipping
98Compare frictionless and friction (sliding) mechanics in generating couplesFrictionless mechanics use built-in loop moments (alpha/beta); sliding mechanics rely on bracket-wire binding/friction contact
99What is a clinical implication of understanding the critical contact angle?It can help avoid unnecessary over-alignment before sliding and prevent excessive binding, potentially reducing treatment time .
100Summarize the key biomechanical principle for effective sliding mechanicsBalance low sliding friction (for translation) with adequate binding contact (for necessary couple generation) while selecting materials/dimensions to control the coefficient of friction and critical contact angle

Mandibular Buccal Shelf (MBS) Screws

1. Anatomy & Definition

  • Mandibular Buccal Shelf (MBS):
    • Area between buccal frenum (mesial) and anterior border of masseter (distal)
  • Boundaries:
    • Medial → Alveolar ridge crest
    • Distal → Retromolar pad
    • Mesial → Buccal frenum
    • Lateral → External oblique ridge
  • Bone characteristics:
    • Dense cortical bone
    • Ideal for extra‑alveolar skeletal anchorage (SS screws)

2. Indications

  1. Class III camouflage (borderline skeletal Class III)
  2. Brodie bite / Scissor bite correction
  3. Mandibular arch distalization (non-extraction approach)
  4. Retreatment cases requiring posterior anchorage

3. Class III Camouflage Protocol (Venugopal et al.)

Treatment Options Based on Clinical Scenario

ApproachIndications
Extraction of lower premolarsSevere crowding, deep Curve of Spee, moderate negative overjet
Extraction of 3rd molars + distalization with TADsMild crowding, mild–moderate COS, mild–moderate negative OJ
MEAW therapyMinimal crowding, moderate–severe COS, retreatments
Increase vertical dimension + Class III elasticsLow-angle cases, deep bite, minimal crowding

4. Safe Zones for MBS Screw Placement (Liu et al. CBCT Study)

Regions Studied

  • L5–L6mb (2nd premolar–1st molar)
  • L6mb–L6db (1st molar roots)
  • L6db–L7mb (1st–2nd molar)
  • L7mb–L7db (2nd molar roots)

Key Findings

  • Bone thickness increases:
    • From premolar → molar region
    • From crest → apical region
  • Thickest bone:
    • L7mb–L7db region (~7.6 mm at 9 mm depth)
  • Best interradicular space:
    • L6db–L7mb region
  • Distance from mandibular canal:
    • >13 mm (safe)

Conclusion (MOST IMPORTANT EXAM POINT)

  • Preferred site:
    → Between distal root of 1st molar and mesial root of 2nd molar (L6db–L7mb)

5. Bone Thickness & Depth (Nucera et al.)

  • Adequate bone at:
    • Mesial and distal roots of 2nd molar
  • Bone depth:
    • ~18.5 mm (mesial root)
    • ~19.9 mm (distal root)
  • Cortical bone thickness >2 mm

Clinical Point

  • Best insertion site:
    → Buccal to distal root of 2nd molar, ~4 mm from CEJ
  • Pre-drilling recommended:
    • Due to high cortical density → prevents excessive torque

6. Biomechanics of Mandibular Arch Distalization

Effects

  • En-masse distalization of mandibular arch
  • Molar intrusion
  • Decrease in mandibular plane angle
  • Closure of anterior open bite (in some cases)

Finite Element Insights (Roberts et al.)

  • Occlusal plane rotation ~16.5°
  • Molar intrusion ~3 mm
  • Decrease in mandibular plane angle ~4°

Requirements for Controlled Mechanics

  1. Full-size rectangular archwire (torque control)
  2. Constant force (NiTi springs)
  3. Force applied directly to arch (segment mechanics)

7. Clinical Effectiveness (Lee et al. 2026)

  • Mean treatment duration: ~9 months
  • Molar retraction: ~1.86 mm
  • Incisor retraction: ~2.89 mm
  • Greater retraction seen with:
    • Longer treatment duration (>12 months)
    • Severe Class III cases (ANB < −2°)

Key Point

  • Effective for whole mandibular arch retraction
  • Not significantly affected by presence of third molars

8. Failure Rate & Success (Chang et al.)

Data

  • Total screws: 1680
  • Failure rate: ~7.2%
  • Success rate: ~93%

Observations

  • No significant difference:
    • Movable mucosa vs attached gingiva
  • Higher failure:
    • Left side
    • Younger patients (~14 yrs)

Clinical Tip

  • Screw head should be:
    • ≥5 mm away from soft tissue → reduces irritation & failure

9. Biomechanics vs Extraction Approach

ApproachEffect
Extraction (premolars)Faster incisor retraction, profile improvement
MBS distalizationNon-extraction, increases lower facial height, slower movement

10. Key Advantages of MBS Screws

  • Extra-alveolar anchorage → no root damage
  • Allows full arch distalization
  • Avoids premolar extraction
  • Useful in borderline Class III
  • Works even in presence of 3rd molars

11. Limitations / Considerations

  • Dense bone → high insertion torque
  • Requires pre-drilling
  • Technique sensitive
  • Patient discomfort due to posterior placement

Quick Viva Summary

  • MBS = dense cortical bone area between buccal frenum & masseter
  • Best site → L6db–L7mb region
  • Indication → Class III camouflage + mandibular distalization
  • Biomechanics → distalization + molar intrusion + ↓ mandibular plane angle
  • Success rate ~93%
  • Pre-drilling required due to dense cortical bone

Infrazygomatic Crest (IZC) Screw

1. Anatomy & Definition

  • Infrazygomatic crest:
    • Buccal process of maxilla connecting to zygoma
    • Palpable pillar of cortical bone between:
      • Zygomatic process
      • Alveolar process of maxilla
  • Intraorally:
    • Crest of bone from buccal plate of alveolar process, lateral to roots of 1st and 2nd maxillary molars

2. Indications for IZC Screws

  1. Class II buccal segments with excessive overjet (avoiding orthognathic surgery)
  2. En‑masse retraction of maxillary arch
  3. Occlusal plane asymmetry / midline deviation correction
  4. Anchorage for cantilever in impacted canine traction
  5. Orthognathic surgery preparation in Class III cases

3. Placement Guidelines (Liou Lin et Al)

CBCT-Based Findings (Liou et al – AJODO 2007)

  • Mean IZ crest thickness:
    • ~5.2 mm (some sites)
    • ~8.8 mm (other sites)
  • Insertion angles:
    • 40° to occlusal plane for thinner zones
    • 75° for thicker zones
  • If IZC thickness > lateral wall of maxillary sinus (~4.2 mm):
    • Prefer 40° angle
  • If thickness > 17 mm above occlusal plane:
    • Prefer 75° angle

Liou’s Recommendations (IZC‑6)

  • Height:
    • 14–16 mm above maxillary occlusal plane and upper 1st molar
  • Angle:
    • 55°–70° to maxillary occlusal plane

4. Safe Zones by Facial Type (Almir Lima et al – AJODO 2022)

Study on 86 CBCTs: hyperdivergent, neutral, hypodivergent.

Safe Zones for IZC Miniscrew Insertion

Facial TypeBetween 1st & 2nd MolarsMesial Root of 2nd MolarDistal Root of 2nd Molar
Hyperdivergent11 mm from crest9 mm from crest11 mm from crest
Neutral11 mm from crest11 mm from crest
Hypodivergent11 mm from crest11 mm from crest

General conclusion:

  • Safe zones:
    • 11 mm from alveolar crest between 1st & 2nd molars
    • On mesial root of 2nd molar (for all facial types)

5. Sagittal Bone Availability (Furão et al – AJODO 2026)

  • 100 CBCTs (40 males, 60 females)
  • At 45° inclination:
    • Sagittal dimension of IZC:
      • Right: ~3.5 mm
      • Left: ~3.6 mm
    • No significant sex or side difference
    • Older patients (>21 y): slightly greater sagittal bone availability than younger
  • Conclusion:
    • Sufficient IZC bone volume at 45° for TAD insertion, with no sex/side variation (except slight age effect)

6. Primary Stability & Angular Insertion

  • Angular insertion of 30° to bone surface showed:
    • Greatest maximum insertion torque
  • Use 30° angle when buccal bone thickness is sufficient
  • Otherwise, follow Liou/Lin recommended angles (55°–70°)

7. Soft Tissue Guidelines (Lin & Roberts – IZC‑7)

  • Attached gingiva: ~1.5 mm clearance from soft tissue to TAD platform
  • Screw composition example:
    • ~1.5 mm cortical bone
    • ~7.5 mm non‑cortical (for 12 mm screw)
    • or ~1.5 mm cortical + ~3.5 mm non‑cortical (for 8 mm screw)
  • Placement:
    • In attached gingiva with ~1.5 mm clearance from mucogingival junction to base of TAD platform

8. IZC‑6 vs IZC‑7 (Liou vs Lin)

FeatureLiou IZC‑6Lin IZC‑7
PositionLateral to MB root of 6Lateral to MB root of 2nd molar
Buccal boneThinThick
Inter‑radicular riskOften inter‑radicularMostly extra‑alveolar
En‑masse distalizationSome limitationFacilitates
Root damage riskHigherLower
Angle55°–70°55°–70°

9. Biomechanics of En‑Masse Maxillary Distalization

Main Effects

  1. Distalization of posteriors
  2. Extrusion of posteriors
  3. Intrusion of anteriors
  4. Clockwise rotation of maxillary occlusal plane

Force Vector & Rotation

  • Line of action passes below maxillary center of resistance (CR)
    → Clockwise rotation of occlusal plane
    → Posterior open bite tendency + anterior deep bite reduction
    → Favorable for:
    • Anterior open bite
    • Class II correction

Transverse Considerations

  • Force from buccally placed screw → rolling in of molars possible
  • Countermeasures:
    • Expanded arch form
    • Torquing of archwire

10. Power Arm (Hook) Height & Anterior Tooth Response (Schwertner et al – FEA)

Three PA heights: 4 mm, 7 mm, 10 mm

PA HeightIncisor ResponseCanine Response
4 mm (short)More extrusion + lingual tipping
7 mm (middle)Preservation of anterior torque, no occlusal plane change
10 mm (long)Buccal tipping + intrusion of lateral incisors; no extrusion of centralsIncreased lingual tipping + extrusion

Key point:

  • Increasing PA height → shift from lingual to buccal tipping of incisors, less extrusion; canines show more lingual tipping + extrusion.

11. Clinical Outcomes (Wu et al – Implant Dent 2017)

  • 20 patients, 8 months average
  • Effects:
    • Incisor retraction: 4.3 mm, crown extrusion: 3.8 mm
    • Canine distalization: 3.7 mm, width increase: 3.1 mm
    • 1st MB cusp distalization: 3.5 mm, intrusion: 2.1 mm, width: 5.0 mm
    • 1st DB cusp distalization: 2.8 mm, intrusion: 3.7 mm, width: 6.2 mm

Conclusion:

  • IZC miniscrews are efficient for maxillary dentition distalization.

12. FEA Comparison of TAD Positions (Sanap et al)

Models:

  • Model‑1: Miniscrews between 1st–2nd premolar and 2nd premolar–1st molar
  • Model‑2: IZC screws between 1st & 2nd molars
  • Model‑3: IZC on MB root of 1st molar

Results:

  • Maximum distalization: Model‑2 (IZC between 1st & 2nd molars)
  • Maximum intrusion + less distalization: Model‑1 (buccal miniscrews anteriorly)
  • No bucco‑palatal rotation in any model

Conclusion:

  • IZC screws in buccal inter‑molar region are most effective for maxillary arch distalization.

13. Prospective Clinical Study (Rosa et al – Angle Orthod 2022)

  • 25 adolescents, mean 7.7 months
  • Effects:
    • 4 mm total arch distalization
    • 1.2 mm intrusion of 1st molar with 11.2° distal tipping
    • Incisor retraction: 4.7 mm, lingual tipping: 13.4°
    • Overjet reduction: 3.6 mm, overbite: 2.4 mm
    • Occlusal plane clockwise rotation: 2.8°
    • Upper lip retraction: 1 mm, nasolabial angle increase: 5.1°

Conclusion:

  • Total arch distalization with IZC miniscrews is effective for Class II.

14. Gummy Smile Correction (Shaikh et al – JCDP 2021)

  • 10 Class II gummy smile patients
  • IZCs (14 mm) between 1st & 2nd molars + anterior mini‑implants
  • Results:
    • Maxillary arch distalization: 4.6 mm
    • Anterior intrusion: 3.8 mm (min)
    • Gummy smile reduction: 3.4 mm
    • Overbite correction: 4 mm

Conclusion:

  • IZC + anterior implants effective for full‑arch distalization + intrusion, improving smile esthetics.

15. Asymmetric Distalization

Biomechanical Consideration

  • If no cant in occlusal plane:
    • Hook height should be same as screw height (force line through CR)

Advantages

  • Single‑step retraction of buccal teeth
  • Midline correction simultaneously
  • No separate premolar distalization step

16. Failure of IZC Screws

Reported Failure Rates

  • Chang et al (Angle Orthod 2019): ~7%
  • Uribe et al (Prog Orthod 2015): ~21.8%

Causes of Failure

  1. Poor bone quality
  2. Immediate loading
  3. Sinus floor penetration
  4. Placement in movable mucosa

Factors for Success

  1. Placement in attached mucosa
  2. No/mild sinus pneumatization
  3. High placement for distalization (to control vertical effects)

17. Maxillary Sinus Penetration (Jia et al – AJODO 2018)

  • 32 patients, IZC miniscrews
  • Success rate96.7%
  • Penetration into sinus78.3%
  • Outcomes:
    • Penetration >1 mm:
      • Membrane thickening incidence: 88.2%
      • Mean thickening: 1.0 mm
    • Penetration ≤1 mm:
      • Thickening incidence: 37.5%
      • Mean thickening: 0.2 mm

Conclusion:

  • High penetration incidence is common, but:
    • Penetration through double cortical plates with depth ≤1 mm is safe and recommended.

Quick Viva Summary

  • IZC = cortical pillar lateral to 1st–2nd molar roots, connecting maxilla–zygoma
  • Indications: Class II en‑masse distalization, asymmetry, cantilever, surgery prep
  • Safe zone: ~11 mm from crest between 1st–2nd molars; 55°–70° to occlusal plane
  • Biomechanics: distalization + posterior extrusion + anterior intrusion + clockwise rotation
  • Power arm height controls anterior tipping/extrusion vs intrusion
  • Failure: due to bone quality, immediate loading, sinus penetration, mucosa type
  • Sinus penetration is common but acceptable if ≤1 mm.

The effect of tooth agenesis on dentofacial structures – Sema Yüksel and Tuba Üçem 1997 Study

Tooth agenesis is one of the most common developmental anomalies encountered in orthodontic practice, yet its true impact on dentofacial structures remains a subject of debate. The 1997 European Journal of Orthodontics study by Sema Yüksel and Tuba Üçem offers valuable insight by analyzing how the location of missing teeth influences skeletal, dental, and soft tissue relationships.


Tooth agenesis, particularly involving the maxillary lateral incisors and mandibular second premolars, creates a discrepancy between tooth size and arch length. Clinically, this imbalance raises important questions:

  • Does agenesis significantly alter skeletal growth?
  • Should treatment planning be fundamentally modified?
  • Are these patients skeletally different or primarily dentoalveolar adaptations?

This study attempts to answer these questions using cephalometric analysis.

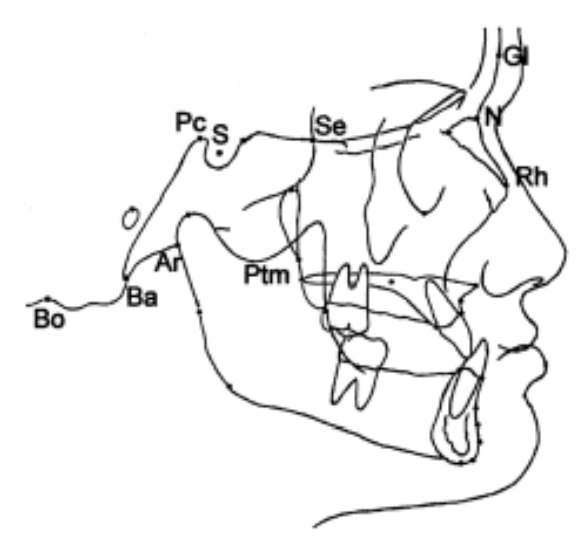

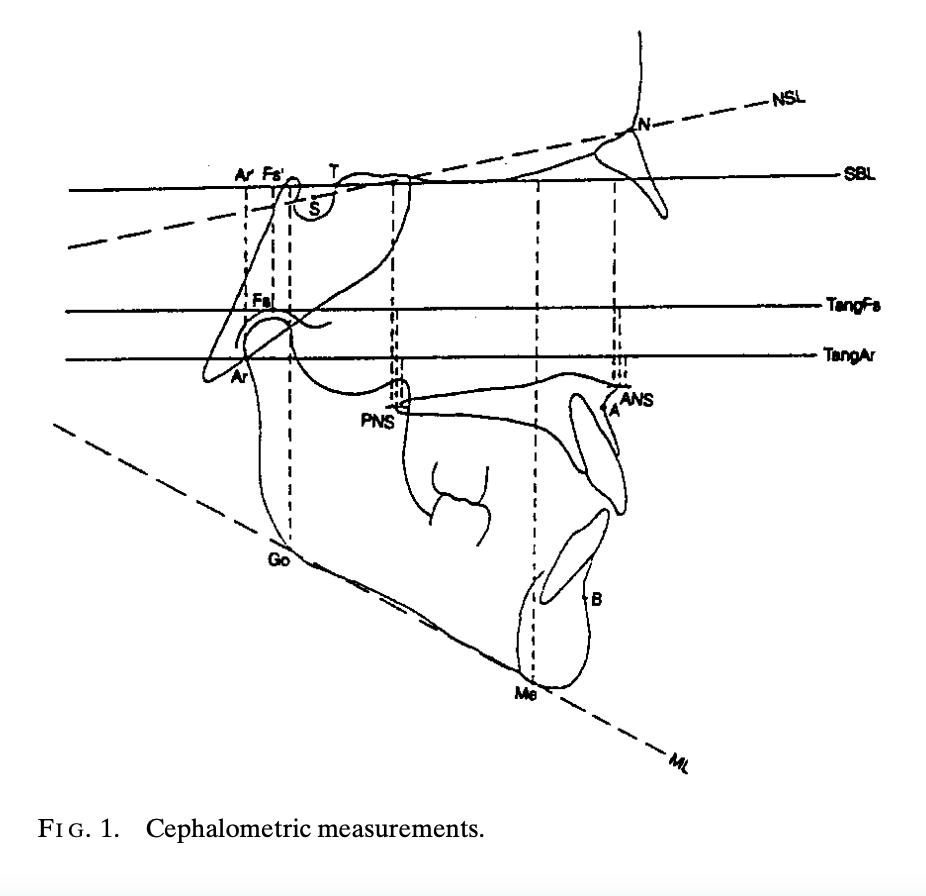

Study Design at a Glance

The researchers evaluated 74 patients with tooth agenesis and compared them to a control group of 13 individuals without agenesis.

Patients were categorized into:

  • Anterior agenesis group (e.g., missing incisors)
  • Posterior agenesis group (e.g., missing premolars)
  • Combined anterior + posterior agenesis

Further subdivision included unilateral vs bilateral absence to assess symmetry-related effects.

Key Findings: What Actually Changes?

1. Skeletal Pattern: Surprisingly Stable

One of the most clinically reassuring findings:

  • Most patients exhibited a Class I skeletal relationship (normal ANB)
  • No major skeletal discrepancies across groups
  • Even when differences existed, values remained within normal limits

However, subtle trends were noted:

  • Bilateral posterior agenesis showed slightly protrusive maxilla and mandible
  • Bilateral anterior agenesis showed a tendency toward forward mandibular rotation (reduced NSGn)

These changes are statistically significant but not clinically dramatic.

2. Dental Compensation: The Real Story

The most consistent adaptation was dentoalveolar:

  • Upper incisors were more proclined and protrusive in agenesis groups
  • Greater protrusion seen when:
    • Missing posterior teeth
    • Multiple teeth were absent

Why?
Likely due to tongue adaptation—more space allows forward positioning of incisors.

Interestingly:

3. Soft Tissue Profile: Minimal Impact

Despite dental changes:

  • No significant differences in lip position
  • Soft tissue profile remained relatively stable

This highlights an important clinical point:
👉 Dentofacial compensation often masks underlying dental irregularities.

4. Effect of Location Matters

The study strongly emphasizes that location of missing teeth influences patterns:

  • Anterior agenesis
    • More influence on incisor inclination and vertical pattern
  • Posterior agenesis
    • More influence on sagittal positioning of jaws and molars
  • Bilateral cases
    • Show greater skeletal and dental deviations than unilateral cases

Clinical Implications for Orthodontic Treatment

From a treatment planning perspective, this study reinforces several key principles:

  • Do not assume major skeletal discrepancies in hypodontia patients
  • Focus more on:
    • Space management
    • Incisor positioning
    • Occlusal relationships
  • Expect compensatory incisor proclination, especially in posterior agenesis
  • Always evaluate:
    • Unilateral vs bilateral absence
    • Number of missing teeth
    • Functional adaptations (tongue posture)

Example:
A patient with bilateral missing mandibular second premolars may present with:

  • Forward-positioned incisors
  • Mild skeletal protrusion
    But still fall within normal cephalometric limits—guiding a conservative, dentoalveolar-focused treatment approach.

Two-couple orthodontic appliance systems utility arches: a two-couple intrusion arch – Davidovitch and Rebellato 1995

If you’ve used a utility arch for deep bite correction, you’ve probably noticed something puzzling: sometimes it intrudes incisors beautifully, and other times it seems to just tip and procline them instead. The reason isn’t clinical error—it’s biomechanics. Davidovitch and Rebellato’s classic analysis (Seminars in Orthodontics, 1995) breaks down exactly why the utility arch is far less predictable than it looks, and understanding this can sharpen how you activate and monitor it.

The One-Couple vs. Two-Couple Distinction

Both the utility arch and the simpler “intrusion arch” use a tip-back bend mesial to the molar tube to generate an intrusive force on the incisors. On paper, they look nearly identical. But there’s a critical structural difference:

  • An intrusion arch is tied to the incisors as a point contact, making it a one-couple system—a single, controllable force whose line of action you choose.
  • utility arch is inserted directly into the incisor brackets, creating a two-couple system—a second, often unintended couple forms right at the incisors.

This second couple is the source of all the unpredictability..

Why the Line of Force Matters

For true incisor intrusion (rather than tipping), the intrusive force must pass through the incisors’ center of resistance (CRes). Since the utility arch is locked into the bracket slot, the force line is fixed by bracket position—and brackets sit facial to the CRes.

That offset creates a moment (MF) that produces a crown-facial/root-lingual tendency, essentially proclining the incisors as you try to intrude them. With a one-couple intrusion arch, you can choose where the tie contacts the segment, letting you control—or even eliminate—this rotational tendency. The utility arch doesn’t give you that freedom.

The Hidden Third-Order Couple

Here’s the part most clinicians never fully appreciate: inserting a rectangular wire into incisor brackets almost always creates a third-order couple (MC), independent of the vertical intrusive force. Below figure depicts the full force system generated by engagement of the utility arch at the incisors and molars, showing how the couples at molar and incisor interact.

This couple generates its own equilibrium forces, and depending on its direction, it either:

  • Adds to the intrusive force at the incisors (if torqued lingual-root/facial-crown, matching the molar’s couple direction), Below figure illustrates a utility arch with a V-bend for crown lingual/root facial rotation in the incisor segment: the second-order couple at the molar and third-order couple at the incisor act in the same direction, making the intrusive forces at the incisors additive (doubled), while reducing incisor proclination.
  • Subtracts from it (if torqued the opposite way, mimicking a symmetric V-bend and canceling out vertical forces). Below figure shows the converse: a V-bend for crown facial/root lingual rotation in the incisor segment, where the couples oppose each other and the vertical forces are reduced.

The catch? You often can’t clinically predict which direction this couple will act — it depends on wire properties, bracket engagement, and how the wire was bent during fabrication. So the “intrusive force” you think you’re delivering may be substantially more or less than intended, and the incisor inclination outcome is similarly unpredictable.

The Cinch-Back Complication

Many clinicians cinch the utility arch to control anchorage and reduce unwanted proclination. But cinching introduces yet another force system—a mesial force at the molar and lingual force at the incisor—that doesn’t pass through the CRes either. The net result: incisor intrusion continues, but now it’s coupled with lingual root movement instead of crown movement. It’s a fix for one side effect that creates another biomechanical wrinkle.

Below figure shows an activated utility arch inserted in the brackets at the incisors and molars, cinched back to introduce this new mesial/lingual force system and the associated moments.

Round Wire: A Partial Solution

Switching to round wire eliminates the third-order couple problem, since round wires can’t generate torque. This does simplify things back toward a one-couple system. However, you lose torque control at the molars too, so the extrusive equilibrium force there creates an uncontrolled crown-lingual/root-facial molar rotation. You’re trading one unpredictability for another.

What You’ll See Clinically

Putting this into plain clinical terms:

  • Typical outcome with a passive utility arch:
    • Incisor intrusion + crown-facial/root-lingual rotation (proclination tendency)
    • Molar extrusion + crown-lingual/root-facial rotation
  • If you add lingual-root torque (crown lingual/root facial) in the incisor segment:
    • More intrusive force at incisors
    • Less overbite reduction from inclination change (may even deepen the bite if too strong)
  • If you add crown facial/root lingual torque:
    • Reduced intrusive force
    • Increased overbite reduction via proclination

Understanding these patterns helps you anticipate what will happen before you place the arch and what to monitor during follow-ups.

Common Pitfalls

Be wary of these frequent mistakes:

  • Assuming the utility arch only intrudes
    It intrudes and tends to procline; if you don’t control torque, you may worsen an already proclined incisor setup.
  • Forgetting molar effects
    The tip-back creates molar extrusion and a crown-lingual/root-facial tendency; anchorage and posterior bite changes can be underestimated.
  • Over-cinching to “stop proclination”
    Cinching changes the horizontal force system and can shift the effect to lingual root movement rather than true inclination control.

How to Use the Utility Arch More Predictably

A practical checklist for clinical use:

  1. Decide in advance: do you want pure intrusion, or intrusion + inclination change?
  2. If control of incisor inclination is critical (e.g., Class II Division 2 with retroclined incisors):
    • Prefer a one-couple intrusion arch, or
    • Use a utility arch with explicit, pre-planned torque in the incisor segment.
  3. When using a utility arch:
    • Fabricate with a clearly defined incisor torque (e.g., deliberate twist or torque bend).
    • Avoid relying solely on cinching to control inclination; use it primarily for anchorage.
    • Monitor molar extrusion and posterior bite opening during follow-ups.

Clinical Takeaway

The utility arch isn’t a “bad” appliance — it’s simply a biomechanically complex one masquerading as a simple leveling tool. Two practical implications for your treatment planning:

  • If predictable incisor inclination control matters (e.g., in a Class II Division 2 case with already-retroclined incisors), a one-couple intrusion arch may give you more reliable outcomes than the utility arch.
  • If you use a utility arch, deliberately controlling the torque in the incisor segment — rather than leaving it to chance — lets you decide whether the third-order couple adds to or subtracts from your intrusive force, giving you a measure of predictability back.

Ultimately, Davidovitch and Rebellato’s point resonates well beyond this one appliance: appliance selection should be driven by biomechanical force system analysis, not just tradition or anecdotal success rates. Understanding why an appliance moves teeth the way it does is what separates mechanotherapy from guesswork.

Incisor edge-centroid relationships and overbite depth – Houston’s 1989 study

Deep bite has traditionally been explained using the interincisal angle—but is that really the most reliable predictor? Houston’s 1989 study in the European Journal of Orthodontics challenges this long-held belief and introduces a more clinically meaningful parameter: the edge–centroid relationship.

The Traditional View

For decades, orthodontists have associated increased overbite with a larger interincisal angle, especially in Class II Division 2 malocclusions. The logic is straightforward: retroclined incisors create a steep incisal guidance, promoting deeper vertical overlap.

Several studies supported this:

  • Popovich (1955): r=0.73r=0.73
  • Ludwig (1967): r=0.52r=0.52
  • Backlund (1960): r0.57r≈0.57

However, Houston highlights an important limitation: even in the best-case scenario, the interincisal angle explains less than one-third of the variation in overbite.

The New Perspective: Edge–Centroid Relationship

Houston proposes a more comprehensive variable:

  • The horizontal distance between:
    • Lower incisor edge
    • Upper incisor root centroid (midpoint of root axis)

Measured along the maxillary plane:

  • Positive: Lower incisor edge is ahead of centroid
  • Negative: Lower incisor edge is behind centroid

Key Findings

  • Strongest correlation with overbite was found in Class II Division 2 cases:
    • Interincisal angle: r=0.53r=0.53, r2=0.28r2=0.28
    • Edge–centroid relationship: r=0.78r=−0.78, r2=0.61r2=0.61
  • Once edge–centroid was accounted for:
    • Interincisal angle had no independent effect (partial r=0.01r=−0.01)

Why This Matters Clinically

The edge–centroid relationship integrates:

  • Apical base relationship (skeletal pattern)
  • Lower incisor inclination
  • Functional occlusal positioning

This makes it far more relevant for:

  • Diagnosis
  • Treatment planning
  • Stability prediction

Clinical Application

1. Class II Division 1 Cases

  • If lower incisor edge is already 1–3 mm ahead of centroid:
    • Simple upper incisor retraction may be sufficient
    • Good stability expected

2. Class II Division 2 Cases

  • Lower incisor edge typically lies posterior to centroid
  • Requires correction for stable deep bite reduction

Options:

  • Lower incisor proclination (limited stability unless growth-supported)
  • Upper incisor palatal root torque (technically demanding)
  • Combination approach (most realistic)

3. Stability Considerations

  • For extrusion-based bite opening:
    • Aim for centroid at least 2 mm behind lower incisor edge
    • Prevents relapse via incisal “slippage”
  • For intrusion-based correction:
    • Less stringent requirement, as eruption forces are better controlled

A Simple Clinical Insight

Think of it this way:

Two patients may have identical interincisal angles—but very different overbites.

Why?

Because what truly determines vertical overlap is not just how teeth are inclined, but where they are positioned relative to each other in space.

Final Takeaway

Houston’s work shifts the focus from angular measurements to spatial relationships. The edge–centroid relationship is a more powerful and clinically actionable predictor of overbite depth and its stability—especially in Class II cases.

For exam answers, remember this line:

  • Interincisal angle is a contributing factor, but edge–centroid relationship is the dominant determinant of overbite depth.

The Importance of the Level of the Lip Line and Resting Lip Pressure in Class II Division 2 Malocclusion – Lapatki BG et al., J Dent Res, 2002

Why tooth position is about balance

Tooth position is not just about bones and brackets; it is about equilibrium between internal and external forces.
The classic equilibrium theory proposes that teeth settle where forces from the tongue, lips, cheeks, and periodontal ligament balance out. Earlier work suggested that:

  • Lips and cheeks are usually more influential than the tongue for anterior tooth position.
  • Resting pressures are more important than short bursts of functional pressure (speech, swallowing, chewing)

This background is crucial when we try to explain the characteristic retroclination of upper incisors in Class II Division 2.

The Class II Division 2 puzzle

Class II Division 2 is characterized by:

  • Distal occlusion of the buccal segments
  • Retroclined maxillary central incisors, often with deep overbite

Clinicians have long suspected that these retroclined upper centrals are “held back” by unusually high lip pressure, particularly from the lower lip resting on the palatal aspect of the incisors. At the same time, family and cephalometric data indicate a strong hereditary component; therefore, many authors have referred to “local genetic factors” influencing the lips and anterior dentoalveolar region.

The missing link until Lapatki et al. (2002) was solid experimental proof that lip pressure is actually higher in Class II Division 2 than in Class I, and an explanation of why.

What this study set out to test

Lapatki and colleagues designed a study with two key objectives:

  1. Compare resting lip pressure on maxillary central incisors (incisal and cervical areas) in Class II Division 2 vs Class I.
  2. Evaluate whether a high lip line and/or increased peri‑oral muscle activity explain any increase in resting lip pressure.

In other words: Is the problem due to where the lip sits (lip line), how hard the muscles work (hypertonicity), or both?

Key findings on lip line and incisor inclination

Two simple but powerful morphologic differences were found:

  • The lip line in Class II Division 2 was, on average, around 5 mm above the incisal edge of the upper centrals, versus about 3 mm in Class I.
  • The maxillary central incisors in Class II Division 2 were retroclined by roughly 16 degrees more than in the Class I controls.

Clinically, this means that in Class II Division 2 cases, more of the incisal portion of the upper centrals lies under the lower lip at rest, and the crowns are already tipped lingually.

Resting lip pressure: what actually changes?

The pressure data are the core of the paper:

  • In Class I subjects:
    • Incisal area often experienced slightly negative or low positive pressures.
    • Cervical area typically had mild positive pressure from upper lip contact.
  • In Class II Division 2 subjects:
    • Incisal area usually had clearly positive pressure from the lower lip.
    • Cervical area frequently showed negative pressure (a kind of “suction” or reduced contact).

Notably, the magnitude of negative pressure was similar in both groups; the real difference lay in the positive incisal pressure, which was more than twice as high in the Class II Division 2 group as the positive cervical pressure seen in controls.

To reflect the real tipping effect, the authors combined incisal and cervical pressure into a weighted average (incisal pressure given more weight because it acts farther from the center of resistance). This effective “lingual tipping load” on the upper centrals was significantly higher in the Class II Division 2 group.

Is it just “strong lips”? EMG says no

Surprisingly, peri‑oral EMG did not show increased resting activity in any of the measured muscles in the Class II Division 2 group:

  • No significant inter‑group differences for orbicularis oris (upper and lower), depressor labii inferioris, or mentalis.
  • Subjects with hypertonic mentalis appeared in both groups with similar frequency.
  • Correlations between EMG activity and lip pressure or lip line were weak and not statistically significant.

So, the data do not support the idea that Class II Division 2 is driven by globally “hyperactive” peri‑oral muscles at rest. Instead, something about the geometry of the lips and teeth seems more important.

Lip line as the key driver

Correlations between lip line and pressure were strong:

  • Higher lip line → higher positive incisal pressure
  • Higher lip line → more negative or reduced cervical pressure
  • Higher lip line → greater overall lingual tipping effect (weighted pressure)

ANCOVA showed that these relationships held across both groups, and there was no significant difference in slope or intercept between Class I and Class II Division 2 when lip line was used as a covariate. In simple terms:journals.sagepub+1

  • Wherever the lip is positioned vertically, it determines how much and where pressure is applied to the crown.
  • A higher lip line means the lower lip engages more of the incisal surface of the upper centrals, boosting their lingual tipping moment.

Thus, the “local genetic factor” seems to be the vertical relationship between lip line and anterior dentoalveolar structures, not an inherently overactive lip musculature.

How does this fit with clinical Class II Division 2 patterns?

Several well‑known clinical observations become easier to explain:

  • Central incisors more retroclined than laterals/canines
    Centrals are usually more extruded and thus more deeply engaged by the lower lip. Lateral incisors and canines tend to be shorter and more labial, so they may lie outside the main zone of lip contact, escaping the full tipping effect.
  • Labially placed upper laterals or canines
    If centrals retrocline early, laterals and canines may erupt relatively labially and can be maintained labial if space is limited or they are less covered by the lower lip.
  • Mandibular rotation and soft tissue “excess”
    Counter‑clockwise mandibular rotation and infra‑occlusion of buccal segments, often described in Class II Division 2, can increase soft tissue redundancy in the lower face and contribute to a cranially displaced lip line.

The picture that emerges is one where skeletal pattern, tooth eruption, and lip line geometry interact to place the centrals in a zone of sustained, elevated resting pressure.

Clinical implications for orthodontic treatment

For clinicians, the take‑home message is pragmatic and important:

  • Class II Division 2 cases are inherently prone to relapse if the underlying lip–tooth equilibrium is not altered.
  • Simply proclining upper incisors without addressing the lip line and vertical position of the crowns may leave the lower lip still exerting a high lingual tipping force.
  • The authors conclude that intrusion combined with proper torque of the maxillary incisors should be a priority, as this can lower the effective contact of the lower lip on the incisal edges and reduce non‑physiologic resting pressure.

In other words, “stability by design” means repositioning the incisors so that their new equilibrium lies closer to a physiologic balance of lip and tongue forces, rather than continuing to fight an unchanged, unfavorable lip‑pressure environment.

The Problem of Overbite in Class II, Division 2 Malocclusion (Mills, 1973)

Overview

  • Class II Division 2 malocclusion is characterized by a deep overbite with retroclined maxillary incisors.
  • The etiology is multifactorial, involving:
    • Dental factors
    • Skeletal factors
    • Soft-tissue influences
  • Deep bite is not caused solely by retroclined upper incisors.
  • Mills (1973) evaluated 60 treated Class II Division 2 cases to determine factors influencing overbite and its stability.

Characteristic Features

  • Mild Class II skeletal pattern with considerable individual variation.
  • Markedly increased inter-incisal angle (most consistent finding).
  • Retroclined maxillary central incisors.
  • Frequently associated retroclined mandibular incisors.
  • Increased lip cover (higher lower lip line over upper incisors).
  • Reduced lower anterior facial height in many patients.
  • Deep overbite is produced by the combined effect of:
    • Increased inter-incisal angle
    • Soft-tissue pattern
    • Vertical facial proportions

Factors Influencing Overbite

  • Inter-incisal angle
    • Strongest correlation with overbite depth.
    • Greater the angle → deeper the overbite.
  • Lip cover
    • Positively correlated with overbite.
    • Increased lower lip pressure helps maintain incisor retroclination.
  • Lower anterior facial height
    • Reduced facial height contributes to deep bite.
    • Correlation weaker than inter-incisal angle.
  • Deep overbite results from the interaction of multiple factors, rather than any single variable.

Mechanism of Overbite Reduction

  • Successful correction associated with:
    • Reduction in inter-incisal angle
    • Proclination of lower incisors
    • Increase in lower facial height during growth
    • Improvement in facial proportions
  • Lower incisor proclination was more effective than upper incisor proclination.
  • Simple incisor intrusion alone showed limited long-term effectiveness.
  • Mandibular rotation contributed only in selected patients.

Clinical Implications

  • Do not treat the overbite in isolation.
  • Evaluate:
    • Inter-incisal angle
    • Lower facial height
    • Lip posture (lip cover)
    • Growth potential
  • Utilize remaining growth whenever possible.
  • Treatment mechanics should emphasize:
    • Controlled lower incisor proclination
    • Correction of incisor inclination
    • Improvement in facial proportions
  • Vertical intrusion alone is usually insufficient for stable correction.

Stability and Relapse

  • Stability depends on correcting the underlying incisor relationship.
  • Relapse is likely if:
    • Inter-incisal angle remains excessive.
    • Facial pattern remains unfavorable.
  • Stable results achieved when:
    • Lower incisal edges contact the cingulum of the upper incisors.
    • A self-retaining incisor relationship develops.
  • Growth contributes significantly to long-term stability.

Treatment Principles (Mills, 1973)

  • Class II Division 2 may represent a natural compensation for a mild skeletal Class II pattern.
  • Mild cases:
    • Preserve acceptable central incisor relationship.
    • Relieve crowding without excessive bite opening.
  • Severe growing cases:
    • Use anterior bite planes.
    • Employ staged orthodontic therapy.
    • Allow favorable repositioning of incisors under soft-tissue influence.

Key Conclusions

  • Deep overbite is multifactorial.
  • Inter-incisal angle is the strongest determinant of overbite depth.
  • Lip posture and lower facial height significantly influence the malocclusion.
  • Long-term success depends on:
    • Growth
    • Incisor reorientation
    • Favorable facial development
  • Lower incisor proclination is generally more effective than upper incisor proclination.
  • Intrusion alone provides poor long-term stability.
  • Stable correction requires establishing a self-maintaining incisor relationship.

References

  • Mills JRE. The Problem of Overbite in Class II, Division 2 Malocclusion. 1973.
  • Erik Backlund. Overbite and the Incisor Angle. 1958.
  • Arne Björk. Prediction of Mandibular Growth Rotation. 1969.
  • William J. B. Houston. Cephalometric analysis of Class II Division 2 malocclusion. 1967.
  • Kevin G. Isaacson. Overbite and Facial Height. 1970.

MARPE vs SARPE for Adult Maxillary Transverse Deficiency

MARPE vs SARPE for Adult Maxillary Transverse Deficiency

PATIENT SELECTION

MARPESARPE
Post-pubertal adolescents and adults with transverse maxillary deficiencyAdults with severe transverse deficiency requiring surgical intervention
Patients seeking a less invasive alternativePatients unsuitable for nonsurgical expansion or with failed previous expansion
Desire for greater skeletal expansion and reduced dental side effectsWhen surgical correction is already planned

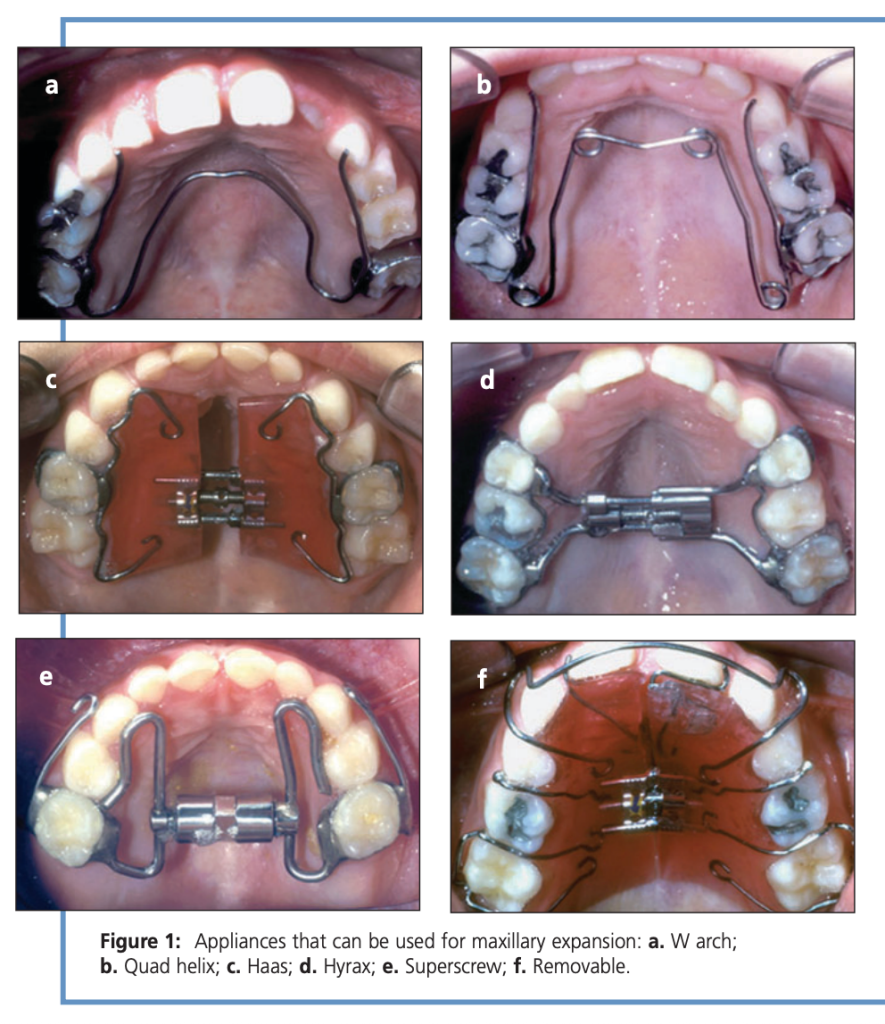

APPLIANCE DESIGN

MARPE

  • Hybrid expander with 4 palatal miniscrews
  • Force delivered closer to maxillary center of resistance
  • Activation: 2/4 turn immediately, then 2/4 turn daily until correction

SARPE

  • Le Fort I subtotal osteotomy
  • Midpalatal and pterygomaxillary disjunction
  • Hyrax-type expander
  • Activation: 1/4 turn twice daily

KEY CLINICAL DIFFERENCES

Skeletal Expansion

✅ MARPE Superior

  • Greater midfacial expansion
  • Greater posterior maxillary base expansion
  • Greater nasal cavity widening
  • Greater posterior palatal expansion

Alveolar Expansion

≈ Similar between MARPE and SARPE

Dental Effects

✅ MARPE Advantage

  • Less molar tipping
  • Less premolar tipping
  • Less dentoalveolar compensation

⚠️ SARPE

  • Greater intermolar width increase
  • Greater interpremolar width increase
  • More buccal inclination of supporting teeth

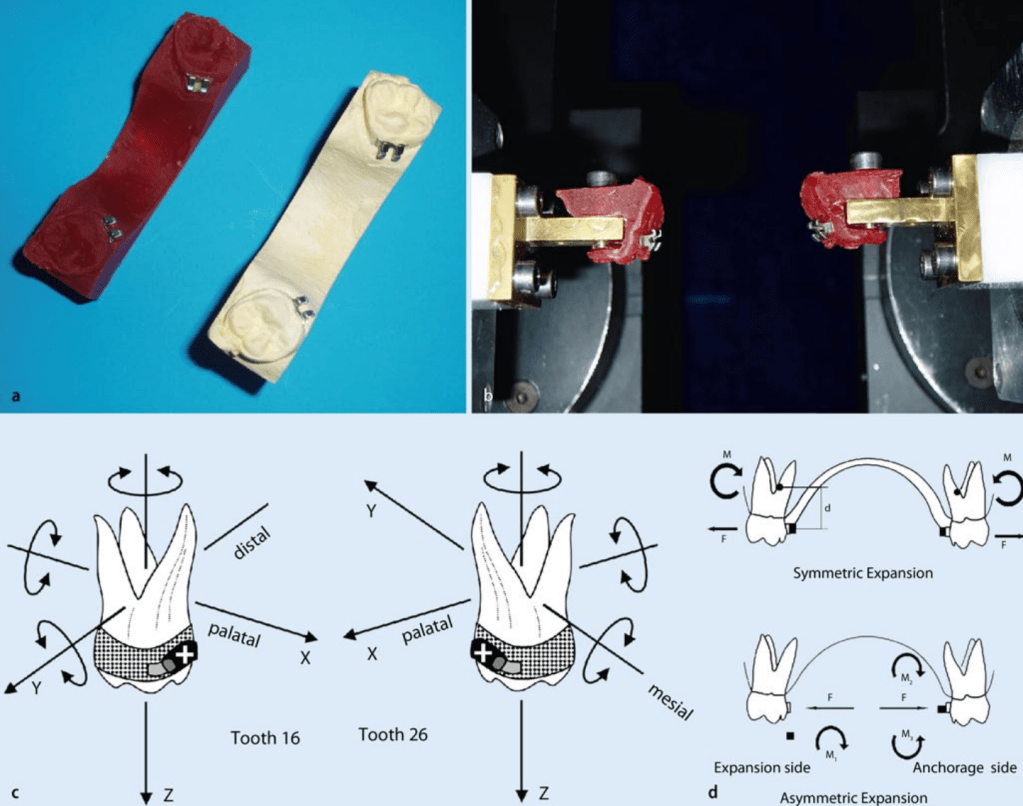

EXPANSION PATTERN

MARPE

  • Parallel expansion (coronal view)
  • Parallel expansion (axial view)
  • Better posterior opening
  • More orthopedic effect

SARPE

  • Triangular opening (coronal view)
  • V-shaped opening (axial view)
  • Greater anterior than posterior expansion
  • More dentoalveolar contribution

AIRWAY EFFECTS

MARPE

  • Greater increase in nasal cavity width
  • Potentially greater improvement in nasal airflow

SARPE

  • Airway improvement present
  • Skeletal airway changes less pronounced

CLINICAL PEARLS

✓ If the goal is maximum skeletal expansion with minimal dental side effects → Choose MARPE

✓ If the patient requires surgical correction or has severe skeletal resistance → Consider SARPE

✓ MARPE provides:

  • More skeletal change
  • Better posterior expansion
  • Less tooth tipping
  • Better periodontal preservation

✓ SARPE provides:

  • Larger intermolar width gain
  • Greater dental expansion
  • More buccal tipping

TAKE-HOME MESSAGE

MARPE = More Bone, Less Tooth Movement

SARPE = More Tooth Movement, More Surgical Involvement

For most young adults with transverse maxillary deficiency, MARPE can be considered the preferred first-line option before proceeding to SARPE.

VIVA QUESTIONS ON FINISHING AND DETAILING

🔹 Basic Concepts

Q1. What is finishing in orthodontics?
Finishing is the final stage before debonding where teeth are positioned to achieve optimal stability, esthetics, function, and periodontal health.

Q2. How did McLaughlin define finishing?
Correction of previous errors, overcorrection where required, and settling of occlusion.

Q3. What is detailing?
Precise 3D positioning of individual teeth involving tip, torque, in-out, and rotational corrections.

Q4. Finishing vs detailing?
Finishing is overall occlusal optimization; detailing is individual tooth refinement.

🔹 Concepts in Finishing

Q5. What is arch-bound condition?
A situation where stiff rectangular wires prevent complete seating of teeth into ideal occlusion due to limited play.

Q6. Why is settling required?
Because rigid wires prevent complete intercuspation; settling allows final occlusal seating.

Q7. Methods of settling?

  • Light round wires + vertical elastics
  • Posterior wire removal + vertical elastics
  • Tooth positioner after debonding

🔹 Dougherty & Keys

Q8. Who proposed finishing factors and when?
Dougherty, 1976 (USC lecture series).

Q9. Mention Dougherty factors.

Think in 4 clusters:

1. Skeletal & AP

  • AP correction + overcorrection
  • Cephalometric goals
  • Profile evaluation

2. Tooth Position

  • Tip
  • Torque
  • Rotations
  • Root parallelism

3. Arch & Occlusion

  • Arch form/width
  • Interdigitation
  • Marginal ridges
  • Occlusal plane

4. Functional & Stability

  • Midlines
  • Space closure
  • TMJ function
  • Habits

Q10. What are Andrews’ six keys?

  • Interarch relationship
  • Crown angulation
  • Crown inclination
  • No rotations
  • Tight contacts
  • Curve of Spee

Q11. What is the seventh key?
Tooth size proportion (Bolton analysis, 91.3%91.3%).

🔹 ABO & Evaluation

Q12. When were ABO goals established?
June 2012.

Q13. How does ABO evaluate finishing?
Using grading of study models and panoramic radiographs.

Q14. What are radiographic goals?
Parallel roots and perpendicular to occlusal plane.

Q15. ABO model criteria?

  • Alignment
  • Marginal ridges
  • Buccolingual inclination
  • Occlusal contacts
  • Occlusal relationships
  • Overjet
  • Interproximal contacts

🔹 Overcorrection Concepts

Q16. Proffit’s view on overcorrection?
1–2 mm overcorrection to counter relapse.

Q17. Zachrisson’s recommendation?
~10% overcorrection for rotations/displacements.

Q18. McLaughlin protocol in Class II?
End-to-end overcorrection + nighttime elastics → settle to Class I.


🔹 Root & Torque Concepts

Q19. What is Raleigh Williams key?
Lower incisor apices should diverge distally; canine apex distal to crown.

Q20. What is rolling-in?
Inward inclination of mandibular posteriors affecting interdigitation.

Q21. How is rolling-in corrected?

  • Upper: Buccal root torque
  • Lower: Lingual root torque

🔹 Archform & Records

Q22. Components of arch form?

  • Anterior curvature
  • Intercanine width
  • Posterior curvature
  • Intermolar width

Q23. Pre-finishing records?

  • OPG
  • Lateral ceph
  • Photographs
  • Study models

🔹 Cephalometric Evaluation

Q24. When is pre-debonding ceph taken?
3–4 months before debonding.

Q25. What parameters are assessed?

  • Soft tissue profile
  • Incisor AP position
  • Incisor torque
  • Mandibular plane
  • Skeletal and dental corrections

🔹 Mechanics & Wires

Q26. Ideal wire for torque in finishing?
0.019×0.0250.019×0.025 TMA in 0.022 slot
0.017×0.0250.017×0.025 TMA in 0.018 slot

Q27. Why TMA?
Flexible with good torque expression.


🔹 Clinical Procedures

Q28. What is serpentine wiring?
Ligature wiring from premolar to premolar after removing archwire to aid settling.

Q29. Indications of positioner?

  • Retention
  • Minor corrections
  • Good compliance
  • Tongue habits
  • Begg finishing

Q30. Contraindication of positioner?
Deep bite.


🔹 Micro-esthetics & Surgery

Q31. Micro-esthetic procedures?

  • Gingival recontouring
  • Tooth reshaping

Q32. What is CSF (Edwards procedure)?
Circumferential supracrestal fibrotomy to prevent rotational relapse.


🔹 Rapid Fire (Exam Finishers)

Q33. Most important goal of finishing?
Stable, functional, esthetic occlusion.

Q34. Most common finishing error?
Poor root parallelism.

Q35. Key to stability?
Proper overcorrection + root positioning.

Q36. Most important ABO parameter?
Root angulation.
